CONTEGA SOLIDO IQ
Other application situations

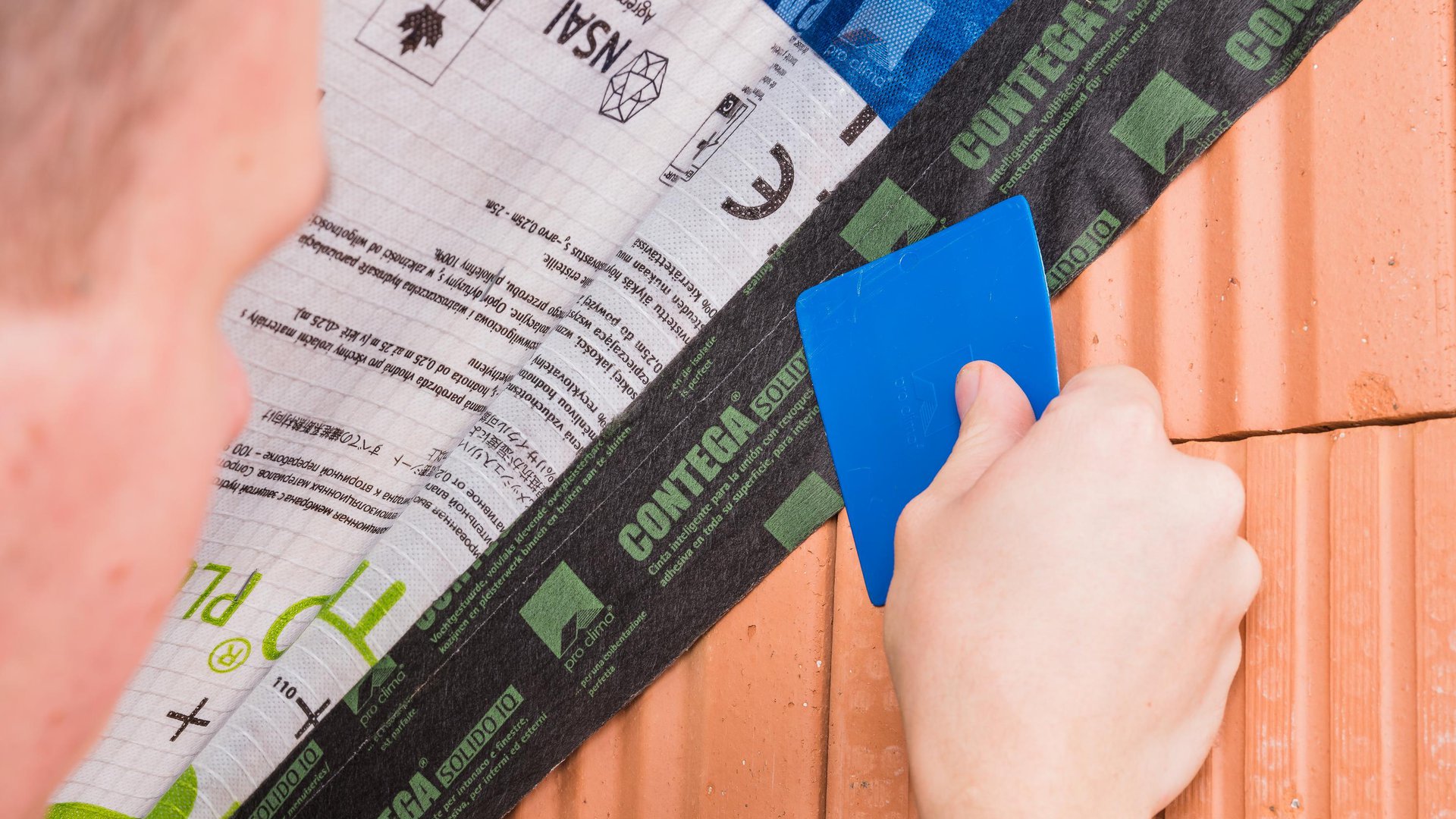

A - Sealing transition between membranes and masonry wall
Guide the vapour control membrane into position. Allow for slack to accommodate relative motion between components.
Remove the release films from CONTEGA SOLIDO IQ(-X).
Centre the tape on the transition point and gradually stick it in place.
Rub using the PRESSFIX application tool to secure the adhesive bond.
A - Sealing transition between membranes and masonry wall
Guide the vapour control membrane into position. Allow for slack to accommodate relative motion between components.
Remove the release films from CONTEGA SOLIDO IQ(-X).
Centre the tape on the transition point and gradually stick it in place.
Rub using the PRESSFIX application tool to secure the adhesive bond.

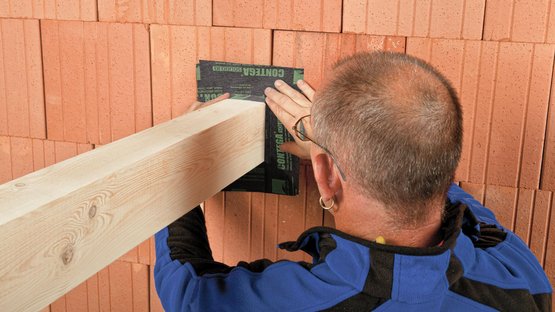

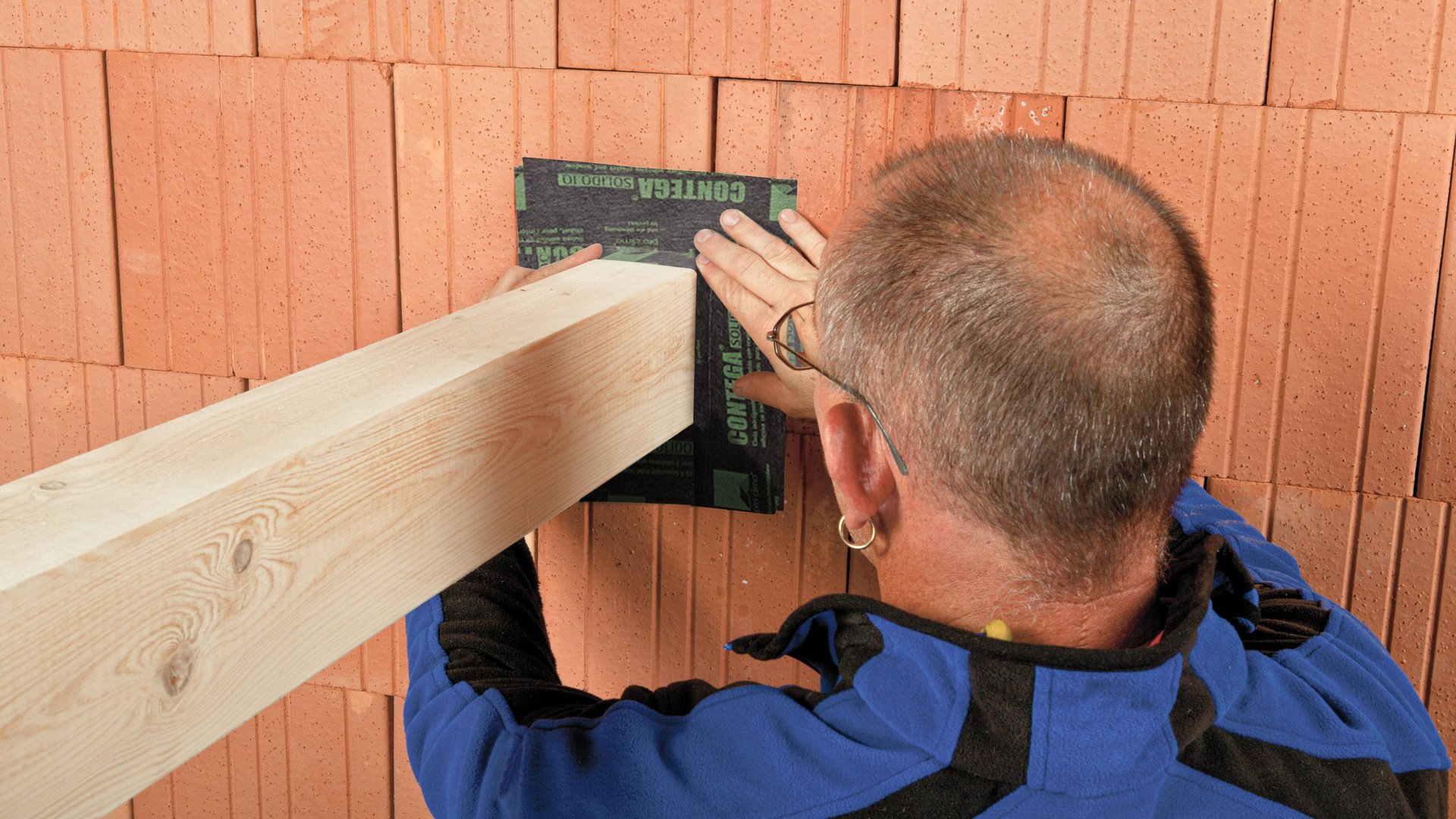

B - Sealing rectangular penetrations on masonry/concrete
Stick the narrow (in the case of IQ-X: exposed) adhesive strip to the first side of the beam, allowing for excess tape on either side. Remove the remaining release film and stick the tape to the subsurface.
Cut nicks into the tape at the beam edges and stick the narrow adhesive strip to the beam and subsurface.
Tape the other sides in an analogous manner to create an airtight seal, applying corner patches if necessary.
Rub using the PRESSFIX application tool to secure the adhesive bond.
B - Sealing rectangular penetrations on masonry/concrete
Stick the narrow (in the case of IQ-X: exposed) adhesive strip to the first side of the beam, allowing for excess tape on either side. Remove the remaining release film and stick the tape to the subsurface.
Cut nicks into the tape at the beam edges and stick the narrow adhesive strip to the beam and subsurface.
Tape the other sides in an analogous manner to create an airtight seal, applying corner patches if necessary.
Rub using the PRESSFIX application tool to secure the adhesive bond.
