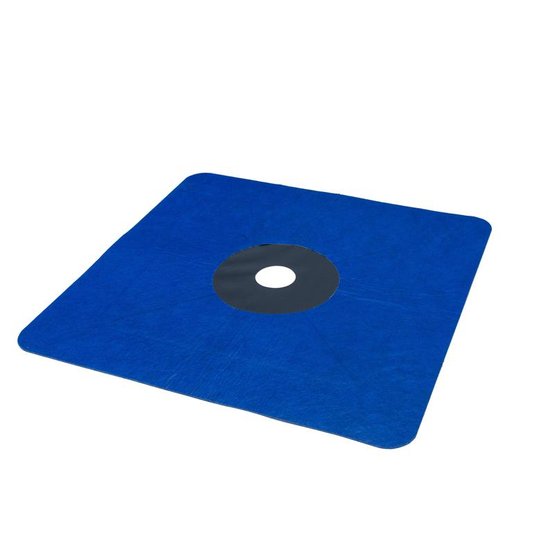

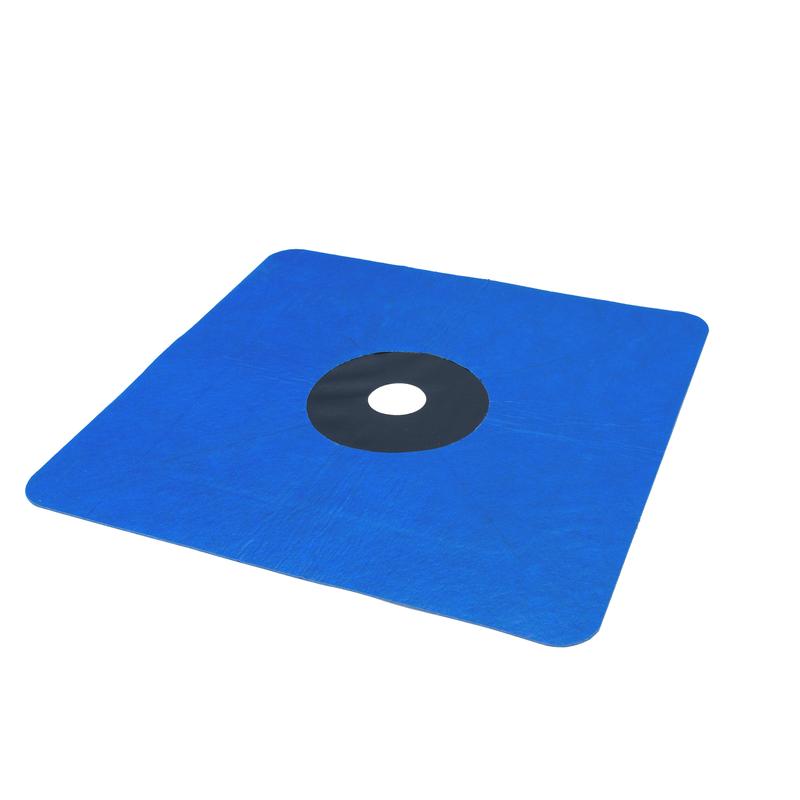

Homogeneously weldable pipe grommet for roof pitches between 5° and 50° (1:12 - 14:12)



Advantages

  • Keeps building components dry: windproof, rainproof and watertight
  • Reliable seam tightness: homogeneously heat-weldable with a solvent welding agent or hot air
  • Easy to apply: extremely high tear-resistance and very stable
  • For sealing in the case of backed-up water, the flange can simply be extended using SOLITEX WELDANO-S
  • For pipes with diameters of 90 - 125 mm (3.5" - 5")


Application

Homogeneously weldable pipe grommet for reliable installation of pipe feed-throughs within the SOLITEX WELDANO roof lining system. Suitable for roof pitches between 5° and 50°. The prefabricated grommet can be used to execute pipe feed-throughs in an easy, quick and permanently sealed manner.
To ensure a permanent seal even in the case of backed-up water, a strip of SOLITEX WELDANO-S must be welded to the resulting flange (see installation instructions).
The shaped element can be welded to the pro clima SOLITEX WELDANO roof lining membrane in a watertight manner using the WELDANO TURGA system solvent welding agent or hot air.
